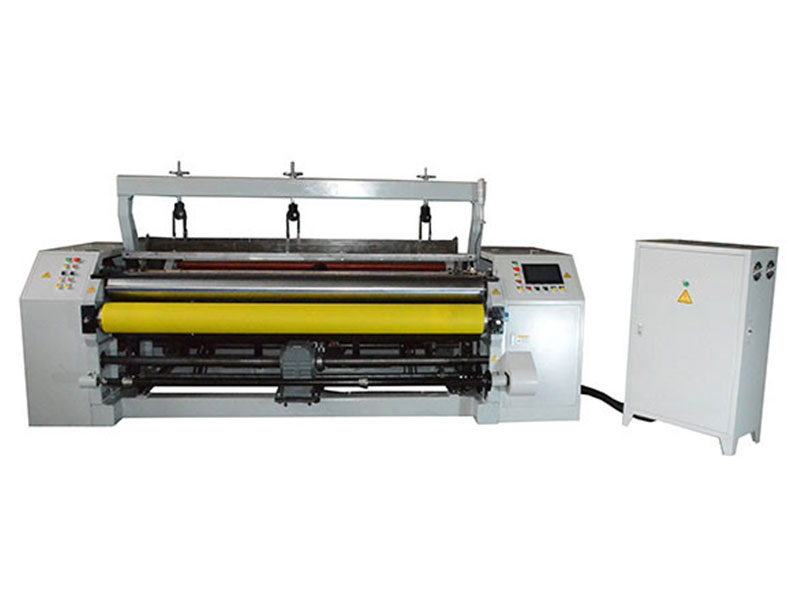

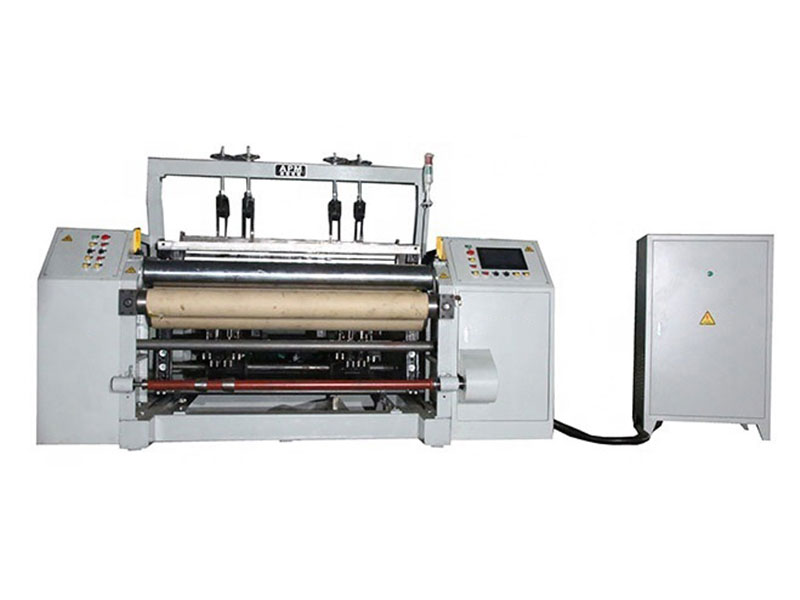

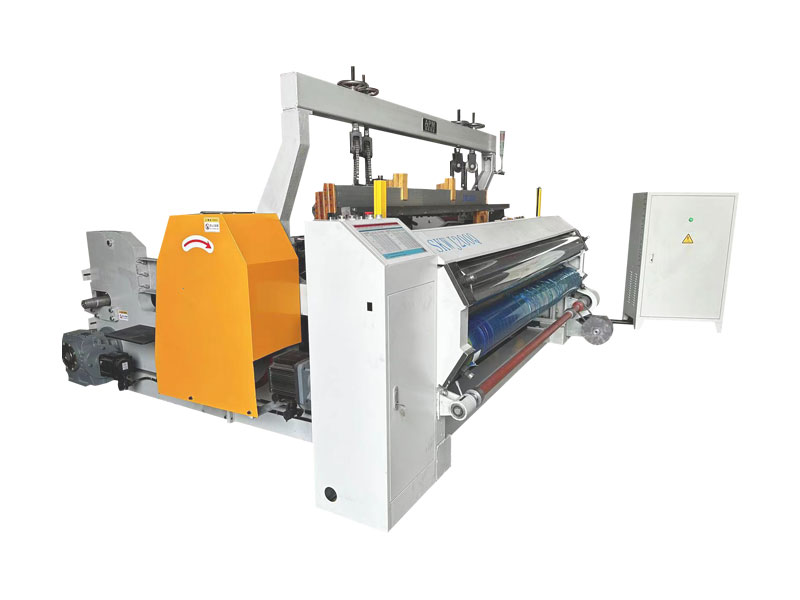

Wire Weaving Machine ZWJ-1300Q/1600Q Features and Advantages
Warp and cloth beams of steel tube, with single end drive. But from 1600mm & Q type with double end drive.

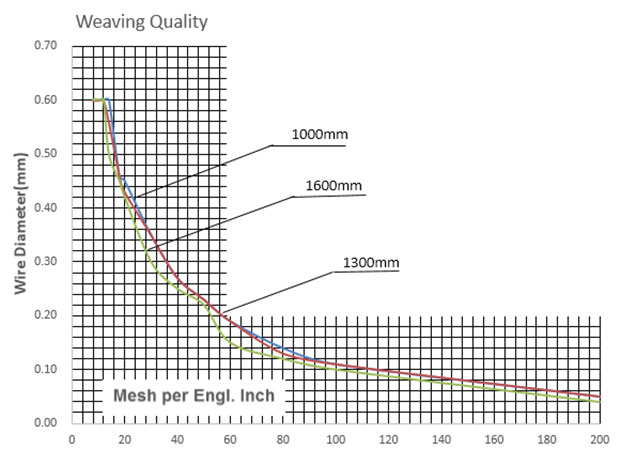

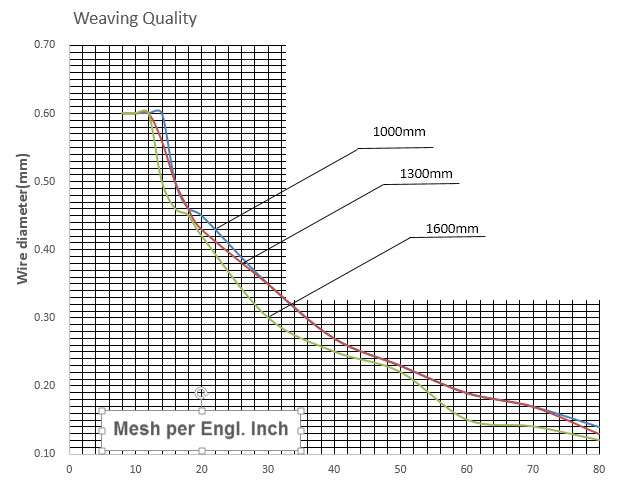

Endless cloth beams construction: two PE coating beams and one steel tube can keep the flatting surface of wire mesh and 24hours weaving without any stop. The better weaving range is 40-250mesh with plain weave
Gear Wheel Regulator for accurate mesh adjustment on finest and heaviest weaving. However full PLC control is no need. Servo motor with the reducer control mesh size and the stable tension by calculating the feeding distance and Wire diameter Shrinkage Rate.
Front and Rear Breast Rolls are adjustable so as to adjust the shed correctly. Equipment of front breast roll with smoothing rail is possible.
Control of Heddle Frames by accurately milled cam segments which can be easily exchanged, where by the shed height can always be adjusted suitably for the rapier being used. the Shedders are small and surface of woven screens are smooth. There is not any bright spot, bright trace and other effects on fine screens.
Geared Flywheel Clutch for power return of slay can be supplied, if desired. The operation is made from the weaver’s position.
Slay Drive by toggle lever system; adjustment for single as well as small one beat; shorter rest of slay as the shuttle-less rapier passes through.
Beat-up of Weft Wire at bottom edge of reed.
Shaft Bearings: all heavily loaded or high speed shafts urn in bronze bushes. The driving shaft is provided with ball bearing and the crankshaft with ring lubricator bearings.
Rapier Transmission Mechanism: the Carbon Fiber or Nylon rapier belt with tooth profile rapier band can make the beating-up speed reach 120r/min. and reduce the weaving voice.
CNC rapier : no need selvage wires to solve many weaving defects.
