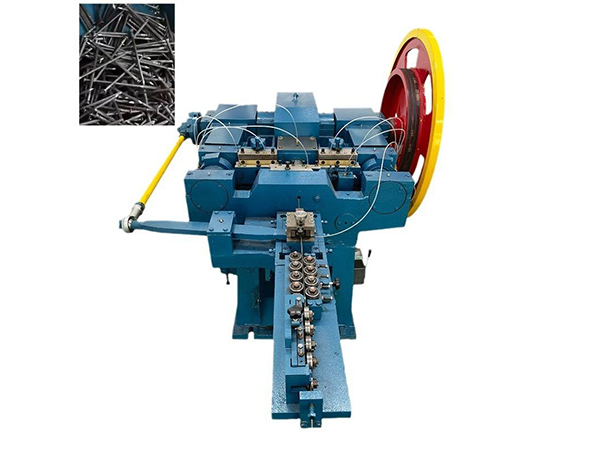

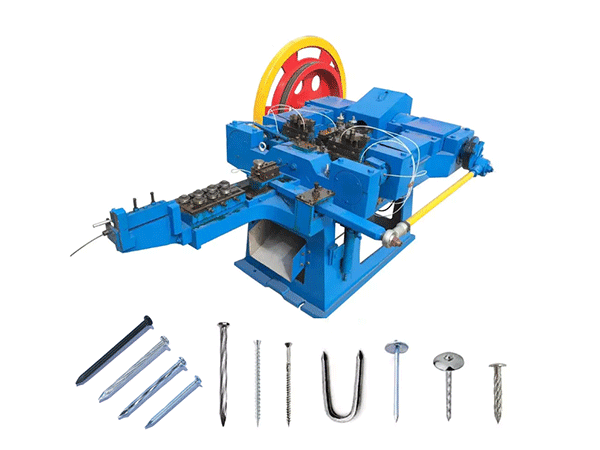

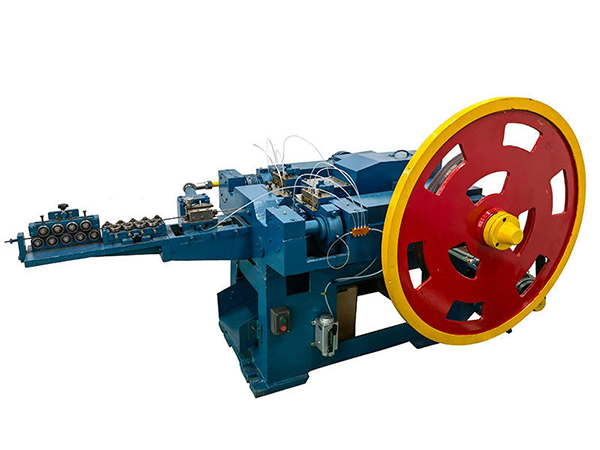

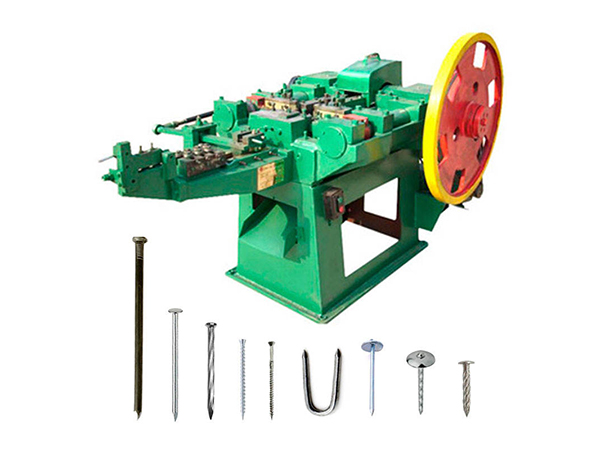

Wire Nail Making Machine

This wire nail making machine adopts plunger type structure so as to ensure the features such as high speed, low noise and less impact.Especially,it can make the high quality of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun.

Availability:

Quantity:



Inquire Add to Basket

Product Description

production capacity：160-450pcs/min

power (kw)： 4

Warranty：1 Year

weight (kg)： 2000 KG

machinery test report： Provided

core components：Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure vessel, Pump

place of origin : HeBei, China

brand name: KUNXIN

Product name :Nail Making Machine

Type : Fully Automatic

Raw material: Low Carbon Steel Wire

key selling points: Easy to Operate

Application: Wire Nail Making

Advantage: High Speed Easy Operation

Voltage: 220V/380V

Nail type: Round Steel Nails

Nail length: 9-200mm

Nail Diameter: 0.9-6.5 Mm (customized)

Dimension: 2330*1390*1350mm

Certification: ISO9001

Machine Parameter

Models		Max. Nail Diameter(inch)		Engineers recommend Nail Length(inch)
X-1C		0.07		0.35-1.18
X-2C		0.11		0.98-1.97
X-3C		0.15		1.97-3.15
X-4C		0.18		1.97-4.33
X-5C		0.22		3.94-7.87
Items	X-1C	X-2C	X-3C	X-4C	X-5C
Capacity (pcs/min)	400-450	300-350	260-300	220-260	180-200
Power (kw)	1.5	2.2	3.0	5.0	5.5
Weight (kg)	750	1050	1350	1900	2200
Dimensions (mm)	13509501000	165011501100	190012001250	233013901350	270015501500

Packing:

Machine packing inside is plastic films and outside is fumigation wooden case.

Our wooden case is very strong,it can bear long time shipping on the sea.

And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.

Wire Nail Making Machine Automatic Wire Nail Making Machine High Speed Wire Nail Making Machine Wire Nail Making Machine Manufacturers Wire Nail Making Machine Suppliers

Production Process

Our team of experts utilizes the latest technology and technuques to manufacture products that are both durable and efficient, ensuring that they will meet or exceed expectations
Deliver Goods
After Sales

After-sale service

1. Our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.

2. For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.

3. We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

4. Remote training operation/equipment maintenance and other service
By working in remote assistance you can:
- operate on the machine within a very short time laps reducing any machine downtime;
- fast operations also on plants far away from APM assistance center;
- avoid the on-site technician interventions and costs.
Should the intervention of a technician still be necessary, with the remote assistance you can identify the problem before the technician’s departure, making the intervention quicker and more effective.

5. Our engineer can also go to your country to help you install and train works for you.
