Features and Advantages

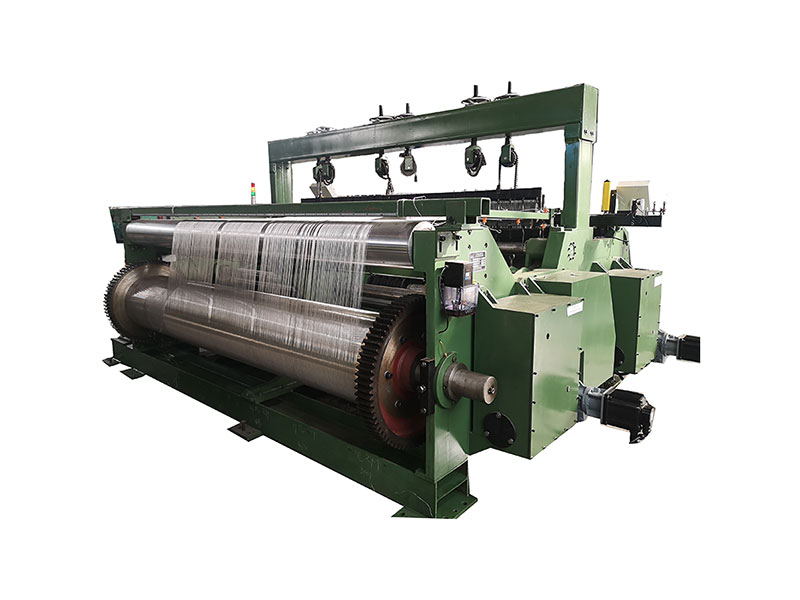

Warp and cloth beams of steel tube, with double end drive. The warp beam maybe provided with rings when desired.
Endless cloth beams construction: two PE coating beams and one steel tube can keep the flatting surface of wire mesh and 24 hours weaving without any stop.
Gear Wheel Regulator for accurate mesh adjustment on finest and heaviest weaving. However full PLC control is no need. Servo motor with reducer control mesh size.
Front and Rear Breast Rolls are adjustable so as to adjust the shed correctly. Equipment of front breast roll with smoothing rail is possible.

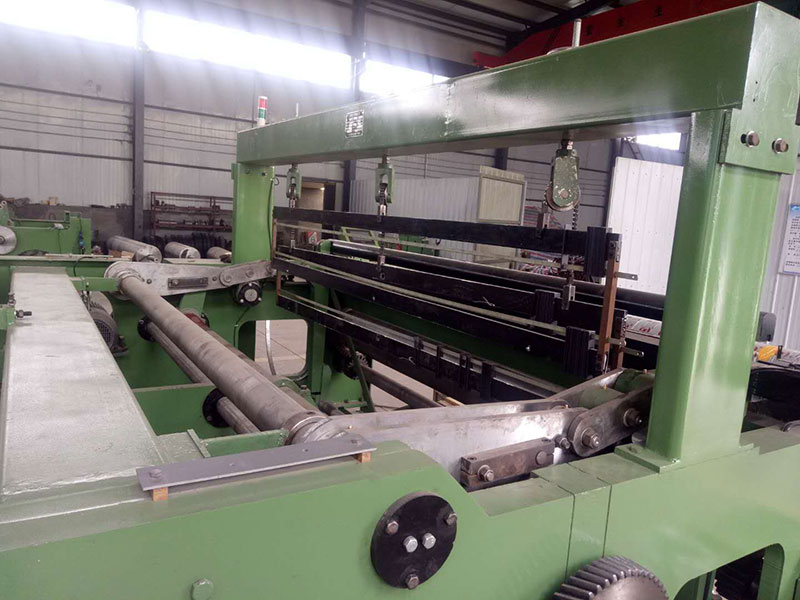

Control of Heddle Frames by accurately milled cam segments which can be easily exchanged, where by the shed height can always be adjusted suitably for the rapier being used
Worm Gear Drive for power return of slay can be supplied, if desired.
Slay Drive by toggle lever system; adjustment for single as well as small or large double beat.
Beat-up of Weft Wire at bottom edge of reed.
Shaft Bearings: all heavily loaded or high speed shafts urn in bronze bushes. The driving shaft is provided with ball bearing and the crankshaft with ring lubricator bearings.
Middle Support: of main shafts from 2000mm (79”) weaving width.
Rapier Transmission Mechanism: the Carbon Fiber or Nylon rapier belt with tooth profile rapier band by CNC can improve the beating-up speed
