Razor Barbed Wire Making Machine

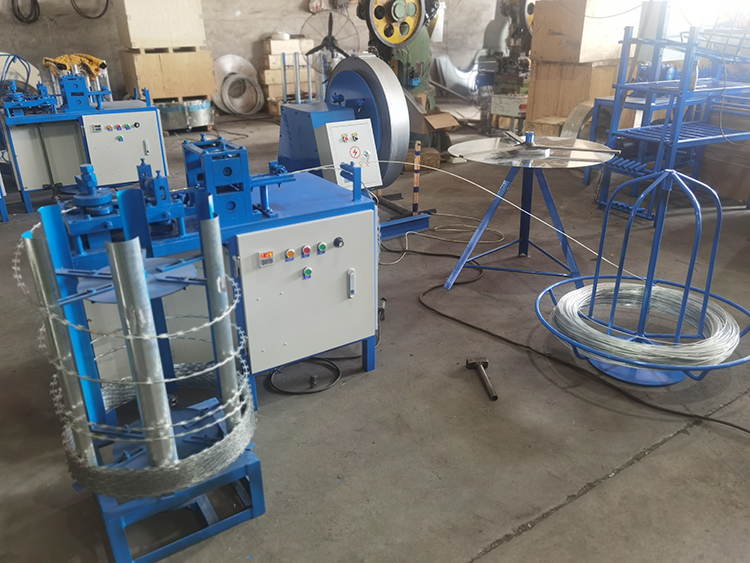

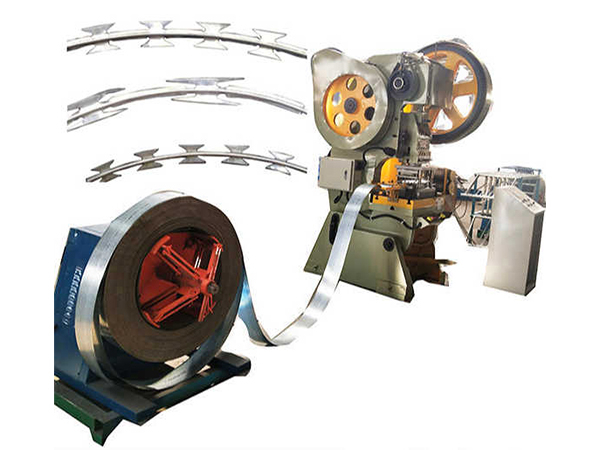

Equipment include: uncoiler、punching press、strip coiling 、wire pay-off stand 、forming machine 、razor wire coiling machine 、the blade feeding part

Availability:

Quantity:



Inquire Add to Basket

Product Description

Main technical parameter:

This machine undertake by three wrap wire machine and one main machin that can cut nine barb belt make up.

It reflects perfectly:

1. High efficiency:can produce the steel belt 80kgs per hour.

2. It is low to loss, the raw materials loss of the old model is 40%, and JC-9 type drops to 15%.

External dimension:

1. The wrap wire machine(long *width *high): 2 X 1.3mX 0.7mX 1.1m

2. The main machine (steel belt presses judging machine) (Long *width *high): 1.1mX 0.85mX2.0m

3. Accept wire machine(Long *width *high): 1.4mX 0.75mX 1.0m

4,Control method : electric cabinet

5,Blade thickness: 0.35mm-0.55mm

6,Wire diameter : 2.4mm-2.6mm

7,Output :80-150kg/h

8,Power :10kw

9,Weight :3500kg

Razor Barbed Wire Making Machine

Razor Barbed Wire Making Machine Razor Barbed Wire Making Machine Manufacturers Razor Barbed Wire Making Machine Suppliers

Production Process

Our team of experts utilizes the latest technology and technuques to manufacture products that are both durable and efficient, ensuring that they will meet or exceed expectations
Deliver Goods
After Sales

After-sale service

1. Our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.

2. For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.

3. We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

4. Remote training operation/equipment maintenance and other service
By working in remote assistance you can:
- operate on the machine within a very short time laps reducing any machine downtime;
- fast operations also on plants far away from APM assistance center;
- avoid the on-site technician interventions and costs.
Should the intervention of a technician still be necessary, with the remote assistance you can identify the problem before the technician’s departure, making the intervention quicker and more effective.

5. Our engineer can also go to your country to help you install and train works for you.
