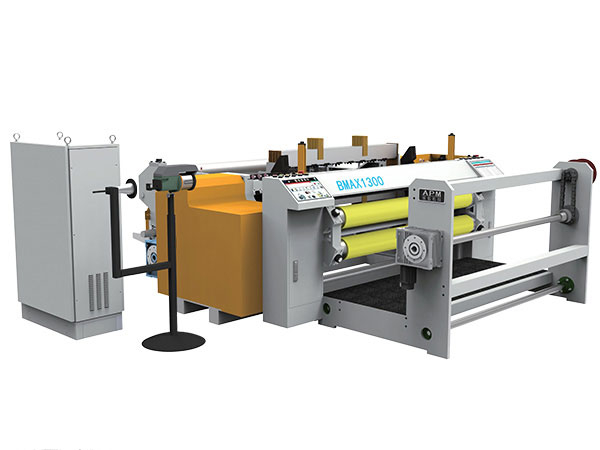

E-Shed NC Light Wire Weaving Machine

This type of machine is mainly used for weaving precision metal mesh for special screen printing levels, and can meet the technical requirements of screen printing applications in the electronic and optoelectronic industries.

Availability:

Quantity:



Inquire Add to Basket

E-Shed NC Light Wire Weaving Machine Technical Parameter

Machine Type : BMAX

Weaving Width : 1000mm、1300mm、 1 600mm、Max.2500mm

Heddle Frame Number : 2 &4or 5

Wire Diameter : <= 0.30mm

Weaving Mesh Range : Square Mesh 40-600(Mesh),Dutch Mesh 2600(Mesh)

Shedding Mechanism : Aluminum heddle frame.1.5KW AC Servo per frame

Drive Way : Electromagnetic Brake Motor Driver,Variable frequency Speed Regulation

Cloth Take-up System : Servo motor drive,3Pu coating beam unlimited cloth mechanism, digital display braid length

Weft Insertion :2.3KW high performance AC servo motor direct drive, The guild wheel drive the carbon fiber rapier belt to do reciprocating weft insertion motion

Beating Mechanism :The crankshaft is a 65mm diameter, 45 (55) steel monolithic forging, and the slay (55square steel) is made of carbon structural steel after heat treatment

Warp let-off System: Servo motor drive,wire electronic tension feedback control, double rear beam, negative swinging rear beam stabilizing mechanism

Control System : New weaving machine control system

Weaving Speed : 60-120 T/min

Features and Advantages

The machine adopts PLC programmable control system, through the servo motor control cloth take-up and warp let-off, to realize the automatic adjustment of weaving tension and electronic display, Servo dobby and high performance servo direct drive weft insertion design, so that the operation is more stable, to achieve high precision, fast speed, low noise, wide weaving range, various types; Can weave stainless steel, iron, copper, aluminum, silver and other metal and alloy materials of wire. This type of machine is mainly used for weaving precision metal mesh for special screen printing levels, and can meet the technical requirements of screen printing applications in the electronic and optoelectronic industries.

E-Shed NC Light Wire Weaving Machine E-Shed NC Light Wire Weaving Machine Manufacturers E-Shed NC Light Wire Weaving Machine Suppliers

Production Process

Our team of experts utilizes the latest technology and technuques to manufacture products that are both durable and efficient, ensuring that they will meet or exceed expectations
Deliver Goods
After Sales

After-sale service

1. Our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.

2. For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.

3. We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

4. Remote training operation/equipment maintenance and other service
By working in remote assistance you can:
- operate on the machine within a very short time laps reducing any machine downtime;
- fast operations also on plants far away from APM assistance center;
- avoid the on-site technician interventions and costs.
Should the intervention of a technician still be necessary, with the remote assistance you can identify the problem before the technician’s departure, making the intervention quicker and more effective.

5. Our engineer can also go to your country to help you install and train works for you.
