Q type or D type Heavy Wire Weaving Machine

The woven metal mesh is widely used in petroleum, chemical, machinery, military, aerospace and other industrial sectors of liquid, gas fltration and solid particle screening.

Availability:

Quantity:



Inquire Add to Basket

Q type or D type Heavy Wire Weaving Machine Technical Parameter

Machine Type : Q

Weaving Width : 1000mm、1300mm. 1600mm、2000 to 2500mm (on request)

Heddle Frame Number : 2 & 4

Wire Diameter : <= 0.60mm

Weaving Mesh Range : Square Mesh 0-120(Mesh), Dutch Mesh 300(Mesh)

Shedding Mechanism : Aluminum heddle frame,CamShedding

Drive Way : Electromagnetic Brake Motor Driver,Variable frequency Speed Regulation

Cloth Take-up System : Servo motor drive,3Pu coating beam unlimited cloth mechanism, digital display braid length

Weft Insertion : 2.3KW high performance AC servo motor direct drive, The guild wheel drive the carbon fiber rapier belt to do reciprocating weft insertion motion

Beating Mechanism : The crankshaft is a 75mm diameter, 45 (55) steel monolithic forging, and the slay (70square steel) is made of carbon structural steel after heat treatment

Warp let-off System : Servo motor drive,wire electronic tension feedback control, double rear beam, negative swinging rear beam stabilizing mechanism

Control System : New weaving machine control system

Weaving Speed : 60-90 T/min

Features and Advantages

The machine adopts PLC programmable control system, through the servo motor control cloth take-up and warp let-off to achieve automatic adjustment of weaving tension and electronic display, the use of conjugate CAM beating-up mechanism, high performance servo direct drive weft insertion and limitless cloth take up mechanism, digital display cloth length, not only meet the characteristics of the machine, but also can shorten the auxiiary weaving time. Can weave stainless steel, iron, copper, aluminum, siver and other metal and alloy materials of wire. The woven metal mesh is widely used in petroleum, chemical, machinery, military, aerospace and other industrial sectors of liquid, gas fltration and solid particle screening.

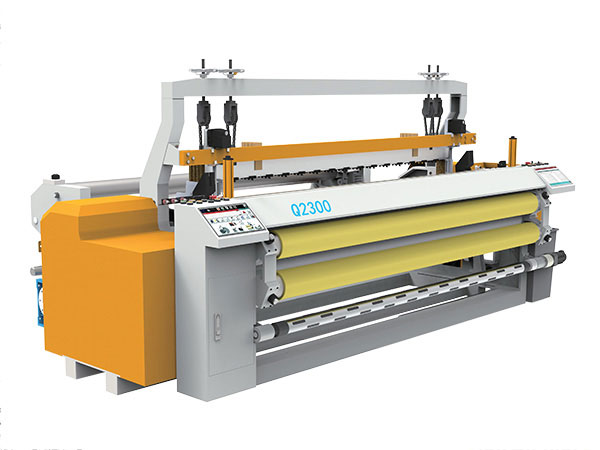

Q type or D type Heavy Wire Weaving Machine Q type Heavy Wire Weaving Machine D type Heavy Wire Weaving Machine

Production Process

Our team of experts utilizes the latest technology and technuques to manufacture products that are both durable and efficient, ensuring that they will meet or exceed expectations
Deliver Goods
After Sales

After-sale service

1. Our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.

2. For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.

3. We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

4. Remote training operation/equipment maintenance and other service
By working in remote assistance you can:
- operate on the machine within a very short time laps reducing any machine downtime;
- fast operations also on plants far away from APM assistance center;
- avoid the on-site technician interventions and costs.
Should the intervention of a technician still be necessary, with the remote assistance you can identify the problem before the technician’s departure, making the intervention quicker and more effective.

5. Our engineer can also go to your country to help you install and train works for you.
